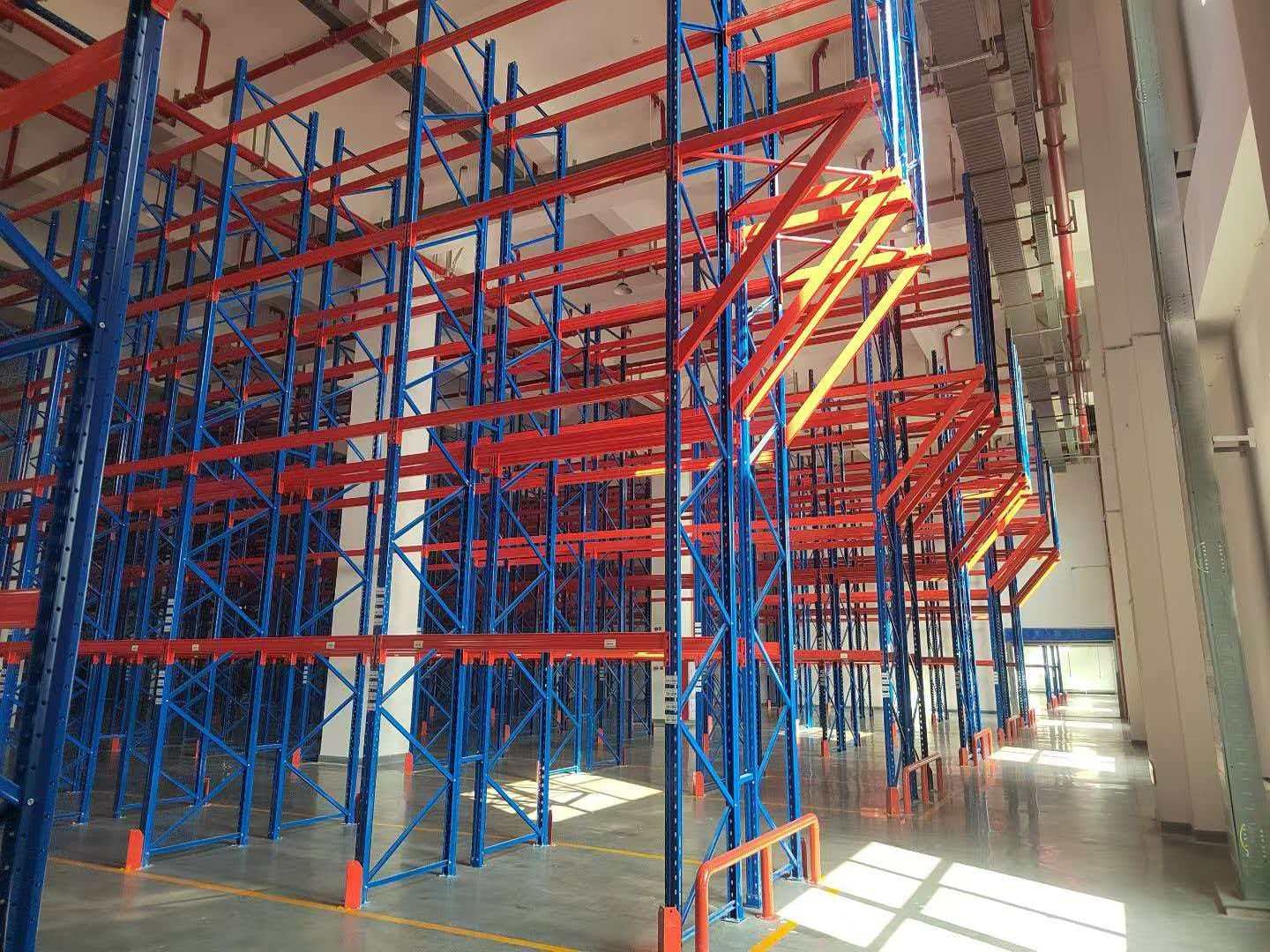

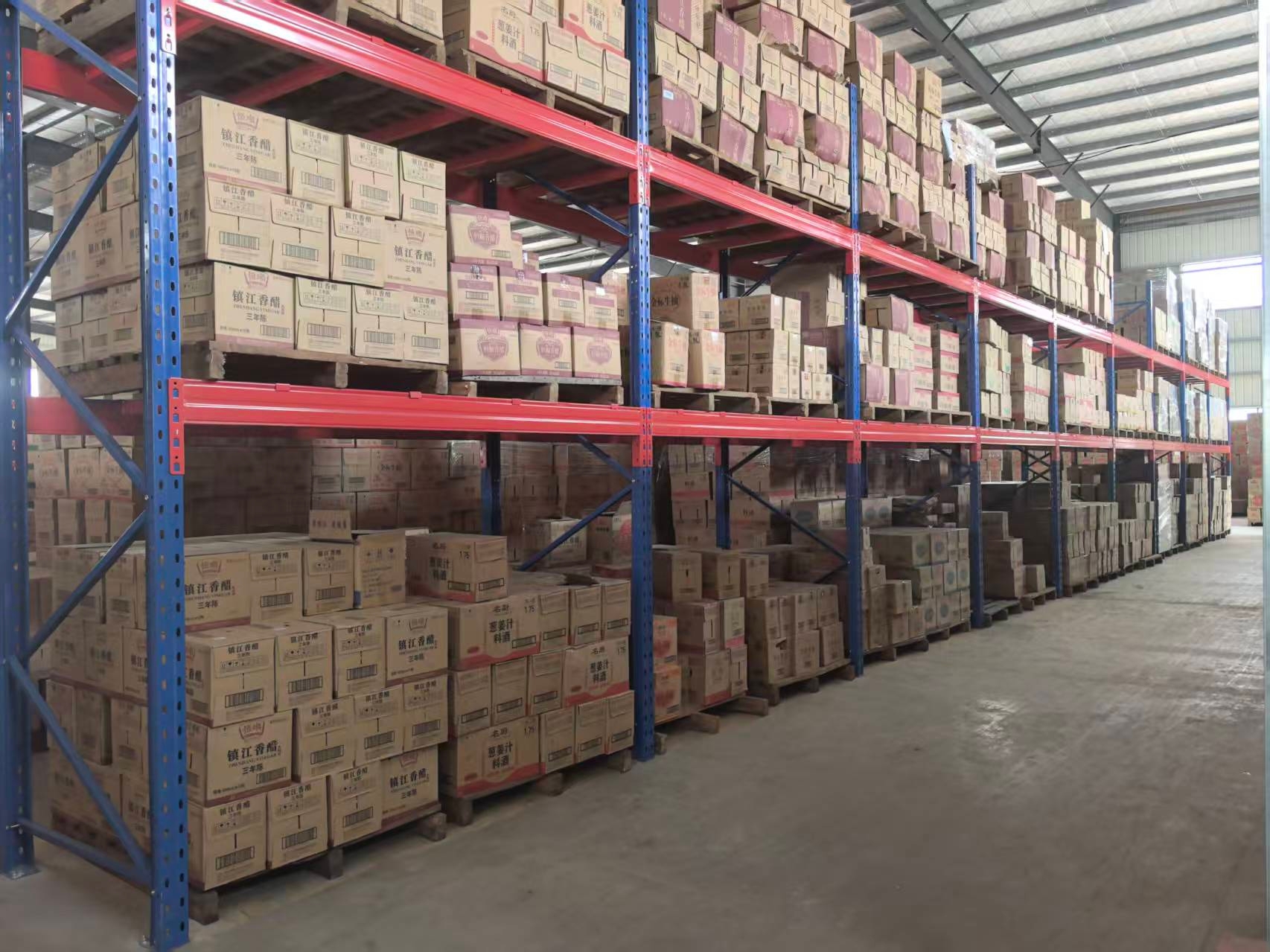

Pallet Racking

Pallet racking is a heavy-duty industrial storage system designed to organize palletized materials in horizontal rows across multiple vertical levels. By maximizing vertical warehouse space, these rugged steel structures drastically increase storage density and optimize inventory management.

Core Anatomy of a Pallet Rack SystemA standard pallet rack bay consists of a few essential, heavy-duty components:

Upright Frames: Vertical steel structures that dictate the depth and height of the racking system.

Load Beams: Horizontal cross-beams that lock into the uprights to support the weight of the pallets.

Wire Mesh Decking: Safety grids that fit between the beams to prevent loose items or damaged pallets from falling.

Teardrop Connectors: The most common industry-standard design, featuring boltless, teardrop-shaped holes for rapid sliding and locking assembly.

Common System ConfigurationsDepending on your warehouse footprint, inventory volume, and rotation needs (First-In, First-Out vs. Last-In, First-Out), facilities utilize several common configurations:Selective Racking: The most universal setup, providing direct forklift access to every single pallet position.

Pallet Flow (Gravity Flow): Utilizes inclined roller beds; pallets loaded from the rear automatically glide to the front picking face (ideal for FIFO food or pharma lines).

Push-Back Racking: High-density storage where nested carts ride on inclined rails, saving aisle space by stacking pallets 2-to-6 deep (LIFO system).

Drive-In / Drive-Through: Allows forklifts to drive directly into the racking lanes to stack pallets, minimizing aisle space for uniform inventory.

Standard Industry DimensionsChoosing the right size depends on your specific pallet overhang and height restrictions.

Standard sizing often follows these criteria:Common Upright Depths: Available in 36-inch, 42-inch, and 48-inch configurations.

Standard Overhang: For standard 48-inch deep GMA pallets, a 42-inch deep upright is the industry ideal because it leaves a safe 3-inch overhang on the front and back.

Beam Lengths: Commonly offered in 48-inch, 96-inch, or 144-inch variations to hold one, two, or three standard pallets side-by-side.

Weight Capacities: Typical U.S. configurations hold anywhere from 4,000 to 13,000 lbs per beam level.
